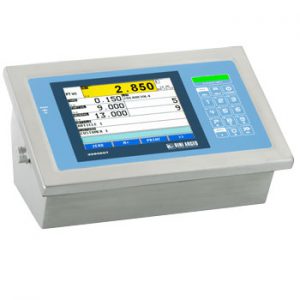

3590EGT “GRAPHIC TOUCH”: Touch Screen weight indicator for industrial applications

I/O SECTION

  • 2 RS232 serial ports, for connection to printer, PC or PLC, radio module and optinal interfaces.
  • 1 RS232 serial port (optional RS485), for connection to weight repeater, remote scale, badge reader or digital load cells.
  • Fitted keyboard emulation input, for barcode/badge readers or external PC keyboard, through cable with mini DIN connector (optional).
  • 4 optoisolated outputs (optional).
  • 2 optoisolated inputs (optional).
  • External Profibus interface (optional), for automation management.
  • Modbus RTU Interface.
  • Optional Bluetooth connection, for quick wireless programming of the activities and the formulas, through PC or tablet.
  • Analog output DAC16O needs the expansion board IOEXPB.

COMPLETELY CUSTOMIZABLE SCREENS

  • Thanks to the programmable Touch Screen Display, you can create custom-made interfaces for any application:

Digital weight indicator with a big touch screen display, suitable for advanced industrial applications. It allows the visualization of all the weighing data and the customization of the screens, simplifying the user operations. Fitted with 3 serial ports, transmission protocols for data communication, completely configurable printouts, integrated alibi memory, and port for connection to barcode/badge reader. CE-M approvable (OIML R-76 / EN 45501).

MAIN FEATURES

  • Backlit graphic display with touch screen technology, lxh= 120x90mm size.
  • Multilanguage software.
  • 15-key alphanumerical waterproof keyboard.
  • 3-way control light.
  • Selectable QWERTY, AZERTY o QWERTZ keyboard integrated in the touch screen.
  • Stainless steel waterproof IP68 enclosure, new optional IP69K protection system.
  • Dimensions: 280x143x185 mm.
  • Suitable for use on the table, column, or wall.
  • Real time clock and permanent data storage.
  • Supplied with alibi memory, integrated on the motherboard.
  • Slot for built-in micro SD for recording the configuration, logos, and customized screens (upon request).
  • Functions available with DINITOOLS utility
    - Configuration, data entry and print formatting.
    - Recording and filing of all the information on PC.
    - Complete retrieval of the configuration.
    - Instrument calibration with numeric values.
    - Customization of the screens.
  • 24-bit A/D converter, 4 channels, up to 3200 conv./sec. and up to 8 signal linearisation points.
  • 4 independent analogue channels (up to 2 in the E-AF03 version) for reading of the weight.
  • Connection with up to 16 analogue load cells of 350 Ohm (45 load cells of 1000 Ohm) and with the main digital load cells available on the market (mod. E-AF03).
  • Up to 10.000e OIML or 3 x 3000e @ 0,3 µV/d CE-M legal for trade.
  • Up to 1.000.000 displayable divisions for internal factory use, with internal resolution up to 3.000.000 points.
  • Connectable to printers and labellers with free programmation of the printout formats.
  • 110-240 Vac power supply.

MAIN CERTIFICATIONS

  • EU Type Examination Certificate (45501:2015)
  • OIML R76
  • OIML R51 - MID
  • OIML R134 (AF09)

APPLICATION SOFTWARE

  • AF01: Totalization and formula weighing (integrated)
  • AF02: Pieces/quantity counting (optional)
  • AF03: Weighbridges - Input/Output vehicle (optional)
  • AF04: Statistical checking of prepackaged goods (optional)
  • AF05: Price compunting and industrial labelling (optional)
  • AF08: Wheel and axle static weighing with 2 or various platforms (optional)
  • BATCH1: Single product dosage systems in loading and unloading (optional)

CUSTOMISED APPLICATIONS

Thanks to our integrated development, you can create complete customised applications in autonomy:

  • wizards, operator messages
  • serial port management, protocols customization
  • digital I/O full management
  • sequential or simultaneous automations
  • data entry, custom archives

Dini Argeo can offer the service of custom development programs.
