Dynamic axle weighing


RWSCP: reinforced platform for dynamic axle weighing.

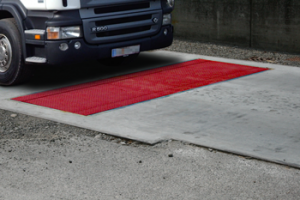

RWSCP: installation example, with a well leveled concrete surface.

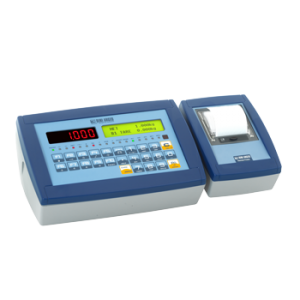

3590EPXP: indicator for dynamic axle weighing, with printer (to be combined to the optional AF09 software)

Reinforced platform which allows you to calculate the weight of a vehicle in transit, summing the various axles, weighed dynamically. Designed for a flush floor installation.


  • Sturdy loading surface in striated sheet steel, sized to withstand any load on the basis of the parameters dictated by the 96/53/EEC directive (maximum load on single axle for the vehicles transiting in Europe).
  • Frame for the containment of RWSCP platform, made up of a single bearing structure, in welded painted steel, that does not require assembly. It facilitates the installation of the scale and simplifies the masonry.
  • Sandblasting and varnishing with bi-component epoxy coating, highly resistant to corrosion.
  • Dimensions of the load surface (lxw): 3 x 0,73 m.
  • 6 compression load cells, C3 class, stainless steel IP68.
  • 20m cable for the connection to the weight indicator.
  • Dust and waterproof wirings and connections, easy to connect and disconnect.
  • Hermetic junction box.
  • Central inspected trapdoors for the ordinary maintenance.
  • Wide range of connectable weight indicators, also functioning with rechargeable battery, which allow to use the platform also without an electrical power supply.
  • Maximum speed of transit: 5km/h.
  • Accuracy 1% for internal use, 2% for legal for trade use (* OIML R134 CERTIFICATION).
    This kind of accuracy is obtainable by following the instructions in the installation manual.


  • The RWSCP20T platform combined with a 3590E "AF09" indicator is OIML R134 certified for the dynamic vehicle weighing, according to the legal standards in force in the Country of use


  • The 3590E weight indicator, in "AF09" version, is suitable for creating dynamic vehicle weighing systems.
    The indicator has two available functioning modes:
    - Checking the weight of the vehicle with printing of the axle and the total weighs.
    - Axle totalisation with input/output function, with storage of the input weighs through ID CODE or VEHICLE PLATE.
    2 digital, programmable inputs and 4 output are available as standard fitted, to create automations, or pilot bars, control light, etc.
