Assembly kits

Assembly kits for FXC and FXD series bending beam cells up to 500kg, suitable for weighing belts, hoppers, tanks and mixers with small or medium size.
ADVANTAGES:
- Body in STAINLESS steel AISI 304.
- Easy and fast assembly.
- Upper plate with antivibration joint.
- ATEX version available for zones 1&21, 2&22.

MAIN FEATURES

MANUFACTURED IN STAINLESS STEEL SAFETY LOCK FOR THE TRANSPORT FITTED WITH AN ARTICULATED JOINT FOR THE VIBRATION ABSORPTION AND THE EXPANSIONS COMPENSATION

Assembly kit for shear beam load cells SBX series, up to 2.500kg. Suitable for weighing of hoppers, tanks, platforms, etc. ADVANTAGES:
- Nickel-plated construction
- Higher plate with spherical joint, for optimal weighing precision
- Anti-overturn
- Locking/bypass system for facilitated transport and maintenance
- Quick installation/removal of the load cell (even if full- loaded)

LOAD CELLS KIT: TECHNICAL FEATURES

For shear-beam load cells, SBX series, from 300 to 2500 kg Nickel-plated manufacturing Self-centering spherical joint, for precise weighing Locking system for cell protection during transport or maintenance of the structure Limit nuts and screws, adjustable Anti-overturn (within the limits declared)

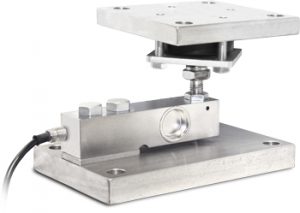

Assembly kits for shear beam load cells SBX/SBK series up to 2500kg, suitable for hoppers, tanks, platforms, etc. ADVANTAGES: - Structure in nickel-plated steel. - Easy and fast assembly. - Upper plate with spherical joint for excellent measuring accuracy. - Height adjustment for a correct leveling. MAIN FEATURES MANUFACTURED IN GALVANIZED STEEL OSCILLATING SPHERICAL JOINT MECHANICAL COMPENSATION OF THERMAL SWELLINGS AND TRANSVERSAL FORCES EASY TO INSTALL GUARANTEES THE MAXIMUM PRECISION OF THE LOAD CELL.

All the specifications and images can be subject to variations and upgrades without prior notice.

Assembly kit for SBX/SBK shear beam load cell up to 2.500 kg. Suitable for weighing of hoppers, tanks, platforms etc. ADVANTAGES:
- AISI 304 STAINLESS steel construction
- Higher plate with configurable system "lock, "side" or "free".
- Mechanical joint for optimal weighing precision
- Height regulation for a correct levelling of the structure
- Anti-overturn
- Locking/bypass system for facilitated transport and maintenance
- ATEX version available, for zones 1&21, 2&22.

KIT FOR LOAD CELLS: FUNCTIONS

Rapid installation / removal of the cell, even with full-loaded structure. Higher plate with system of expansion compensation, having three specific functions (lock, side and free). Bypass function for transport/moving of the structure and maintenance. Anti-overturn (within the limits indicated in the product manual). Limit function against accidental overload (within the limits indicated in the product manual). Fake cell function for weighing of liquid materials.

KIT FOR LOAD CELLS: FEATURES

Manufactured with technologies studied and designed by Dini Argeo. Suitable for SBX/SBK load cells, up to 2500kg (not included in the kit). Fully in STAINLESS steel AISI 304, with electropolished finishing, for better resistance to external agents. Oscillating joint, for optimal weighing precision. Simplified base fixing with 3 holes, or complete with 4 holes. The kit is designed to allow the correct functioning of the cells and obtain optimal weighing precision. However, it does not have protection function for the cell, neither for the structure. Consult the manual for more technical details.

Assembly kits for double shear beam load cells DSBI series up to 30,000kg, suitable for weighing hoppers, tanks and silos of big size.
ADVANTAGES:
- Body in STAINLESS steel AISI 304.
- Centering plate/electrostatic bypass.
- Anti-overturn system.
- Locking/bypass system for facilitated transport and maintenance.
- ATEX version available for zones 1&21, 2&22.

MAIN FEATURES

MANUFACTURED IN AISI304 STAINLESS STEEL GREAT RESISTANCE TO LATERAL FORCES BOLTS FOR MAINTAINING THE RAISED POSITION, FOR EASY INSTALLMENT AND/OR SUBSTITUTION OF THE LOAD CELL SELF-CENTERING CONNECTION SEGMENT BETWEEN LOWER AND UPPER PLATES.

Installation kit for compression load cells series CP/CPX up to 12.500kg, suitable for silos, tanks and hoppers weighing.
ADVANTAGES:
- Self-centering connection segment between lower and upper plates.
- Protection against electrostatic charges
- Anti-overturn system
- Blocking system for an easy maintenant and a safe shipment

MAIN FEATURES

NICKEL-PLATED STEEL BODY. GREAT RESISTANCE TO LATERAL FORCES. NUTS FOR MAINTAINING THE RAISED POSITION, FOR EASY INSTALLATION AND/OR SUBSTITUTION OF THE LOAD CELL. LIMIT-SWITCH NUTS FOR PROTECTION OF THE LOAD CELLS IN CASE OF OVERLOAD. SELF-CENTERING CONNECTION SEGMENT BETWEEN LOWER AND UPPER PLATES. DUMMY LOAD CELLS FUNCTIONING FOR THE WEIGHING OF LIQUIDS. The KCPNA kit is designed to allow the correct functioning of the cells and the requested weighing accuracy, within the limits described into the technical manual.

Assembly kits for compression load cells CP/CPX series up to 100,000kg, suitable for weighing silos, tanks, hoppers of big size.
ADVANTAGES:
- Body in STAINLESS steel AISI 304.
- Centering plate.
- Protection against electrostatic discharges.
- Anti-overturn system.
- Locking/bypass system for facilitated transport and maintenance.
- ATEX version available for zones 1&21, 2&22.

MAIN FEATURES

AISI304 STAINLESS STEEL BODY. GREAT RESISTANCE TO LATERAL FORCES. NUT FOR MAINTAINING THE RAISED POSITION, FOR EASY INSTALLATION AND/OR SUBSTITUTION OF THE LOAD CELL. LIMIT-SWITCH NUTS FOR PROTECTION OF THE LOAD CELLS IN CASE OF OVERLOAD. SELF-CENTERING CONNECTION SEGMENT BETWEEN LOWER AND UPPER PLATES. DUMMY LOAD CELLS FUNCTIONING FOR THE WEIGHING OF LIQUIDS. The KCPN kit is designed to allow the correct functioning of the cells and the requested weighing accuracy, within the limits described into the technical manual.

Thanks to the ELGO modular kit, it is possible to quickly install CP/CPX compression load cells, up to 12.500kg, for weighing of silos, tanks, or different kinds of structures, containing installation costs. Built in STAINLESS steel and extremely simple to clean, ELGO is ideal for weighing in environments which are hostile, or that have high hygiene requirements. ATEX certification II 2GD c IIC T6 85°C.

MODULAR KIT: ADVANTAGES

Adapt the kit's height to the structure to be weighed. Choose the ideal position for the load cell, lifting it from the ground in order to avoid dust and rubble. Choose the ideal installation direction of the cell (standard or turned upside down), according to the application. Create double cell systems, doubling the reliability of the weighing system.

MODULAR KIT: TECHNICAL FEATURES

Compatible with CP/CPx load cells up to 12500kg. Square stainless steel plate, for fixing directly to the load cells or to the circular plates. Stainless steel multifunctional circular plates, designed to reach the desired height, and for the slot and locking of the load cell. Stainless steel load button, to combine with ELGOC for simple systems, with dummy load cells. Self-centring system for optimal weighing performances. Compensation system of the expansion on the transverse axial, +/- 2,5mm. The ELGO kit does not avoid overturns, nor protect against overloads/lateral forces.
