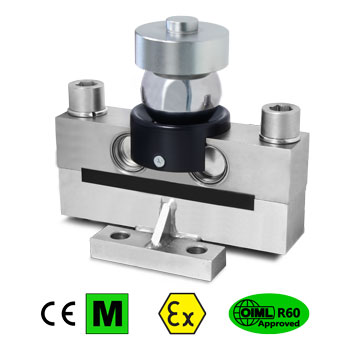

Double shear beam load cells particularly suitable for weighing weighbridges, dosage systems, tanks, silos, etc., complete with support and oscillating spherical joint. CE-M approved.
CAPACITIES (kg): 25000, 30000, 40000.
OIML R60. C3 precision class.
Nickel-plated steel. IP68 protection.
 |
|
|
TECHNICAL FEATURES
|
|
|
- Minimum verification interval: Vmin = EMax / 10.000;
- Maximum number of load cell divisions: nLC=3000 (C3);
- Full Scale Output: 2mV/V +/- 0,2%;
- Temperature effect on full scale output: 0,0014%FS/°C;
- Tempeature effect on the zero: +/- 0,0017%FS/°C;
- Compensated temperature range: -10°C/+40°C;
- Operating temperature range: -35°C/+65°C;
- Creep error after 30 minutes: 0,02% F.S;
- Excitation voltage: from 5 to 18 VDC;
- Input Resistance: 750 Ohm;
- Output Resistance: 700 ± 7 Ohm;
- Zero Balance: +/-1,5% F.S.;
- Insulation resistance > 5000 MOhm;
- Safe overload > 150% F.S.;
- Maximum overload 300% F.S.;
- 4-wire shielded cable, 15m long.
|
Wiring Code
|
| Colour |
Function
|
| -- |
SHIELD
|
| GREEN |
OUTPUT +
|
| RED |
INPUT +
|
| WHITE |
OUTPUT -
|
| BLACK |
INPUT -
|
|
